Description
JC200 EdgeCam Pro will be a crucial and cost-effective tool for ensuring safety on the road and guarding against illegal activity. With clear 1080p HD video recording at 30 frames per second on a wide-angle 140-degree lens, JC200 is able to get every detail.

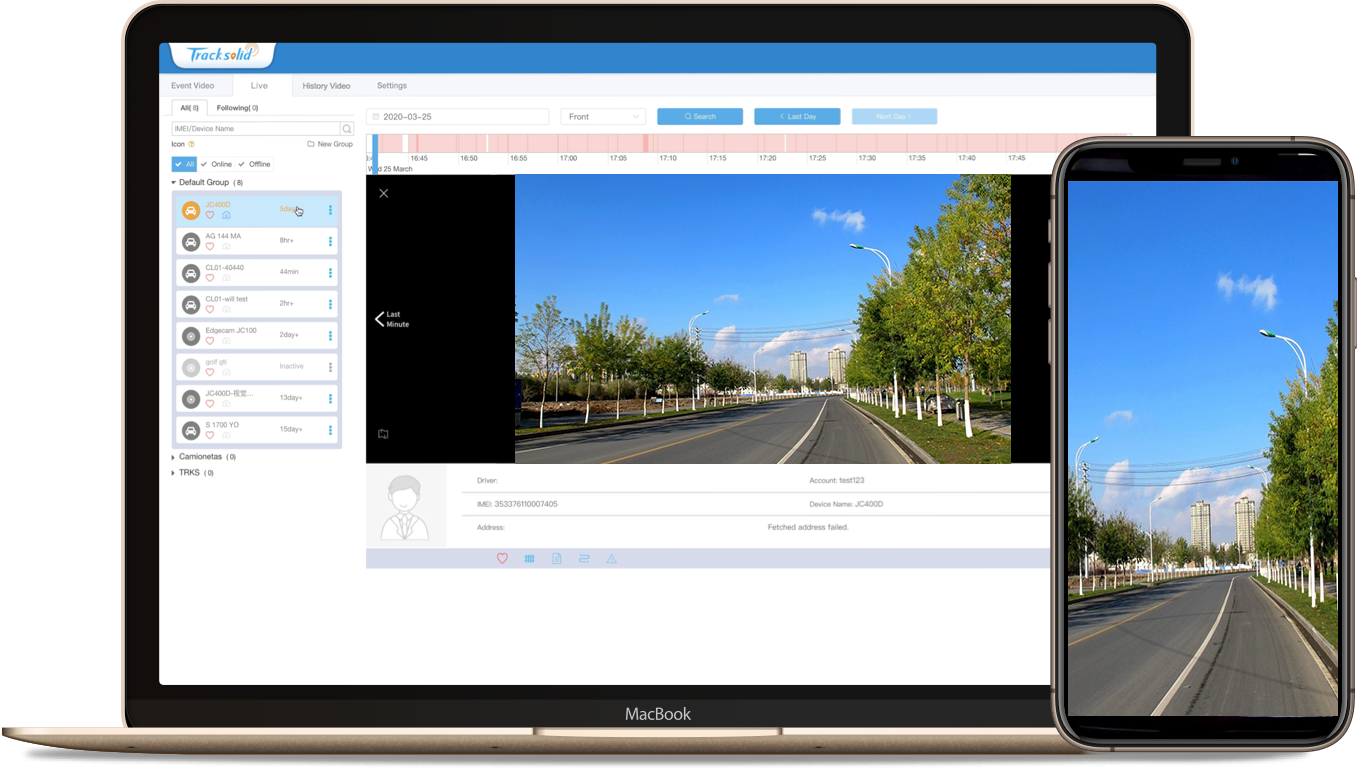

Live Video on Web/APP
No matter what you are doing, you can choose any time to watch the real-time dynamics of the driver on the web and APP, and supervise and manage anytime.
Dual Camera Lens
The dual-facing dashcam has both integrated road-facing and driver-facing cameras that records in the cab, enabling you to monitor the road ahead and the driver.
Driver Behaviour Monitoring
Control the driver’s driving dynamics, rationalize the driver’s behaviors such as harsh acceleration, rapid deceleration, and hard braking to reduce the accident rate and improve fuel economy of the fleet.
-
Harsh Acceleration
-
Hard Braking
-
Sharp Turn

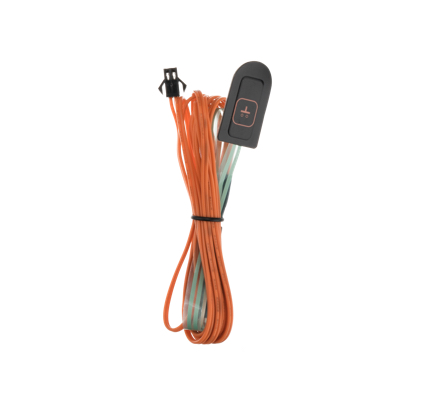

Panic Button
In the event of an accident, the panic button allows the driver to asks for help by calling the SOS phone number continuously and marks important video footage for review. The external SOS button is within easy reach, making the rescue response more efficient and faster, protecting the driver’s safety.
| Category | Item | Specification | Remark |
| Hardware | CPU | ARM Cortex A7 Quad-Core 1.2GHz | |
| Flash | eMMC Flash 8G | ||
| RAM | LPDDR3 1GB | Frequency 533MHz | |
| Band | GSM & WCDMA | GSM 850/900/1800/1900 WCDMA 850/900/1900/2100 | |
| Function | GPS tracking | Platform & APP | |
| DVR | Full HD 1080P | ||
| Wi-Fi | 802.11 b/g/n | Frequency 2.4 GHz, hotspot | |
| Remote monitoring & GPS tracking | √ | ||
| Live view | In-car/front-car live video streaming via APP | RTMP live stream | |
| Cameras | Main camera | Full HD 1080P, adjustable viewing angle 120° support dual-recording | |
| Sub camera | 640*480, viewing angle 90° | ||
| G-Sensor | √ | ||
| Light-Sensor | √ | ||
| Gyroscope | √ | ||
| GPS module | √ | ||
| MIC & Speaker | √ | Built-in,speaker 2030, MIC D4.0*1.5 | |
| TF card | Max 32GB | ||
| UART interface | √ | Connect by Power cable | |
| USB data interface | √ | Micro USB 5 Pin | |
| Power | Supply Voltage | DC 12-24V | |
| Battery | Battery | 450mAh | |
| Size | Dimension | 109*69*52 mm | |
| Weight | 225g | ||
| Certificate | CE, FCC, Emark, ROHS
|
||
Panic Button x 1- >Relay x 1
- Panic Button x 1

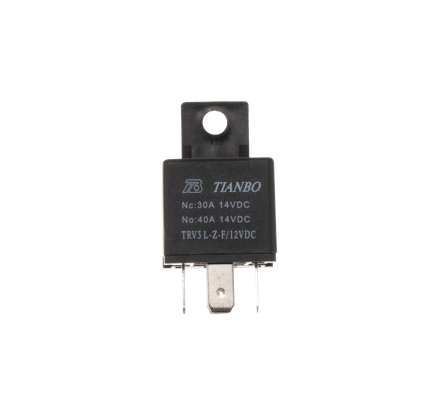

- >Relay x 1

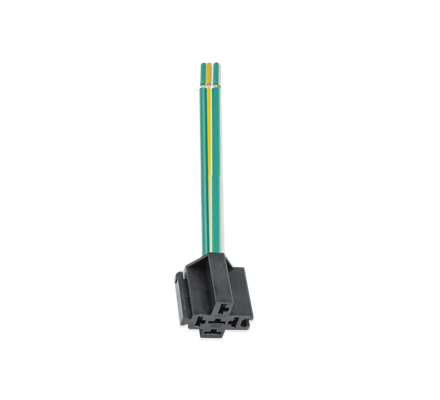

- Base Relay x 1
- Manual x 1

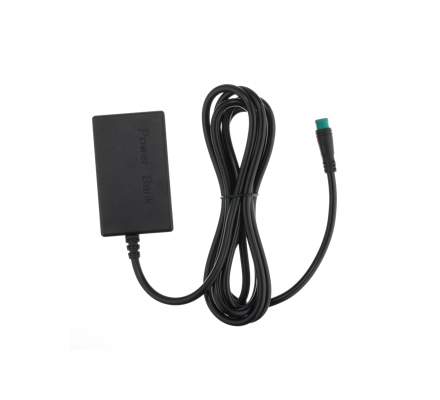

- External Battery x 1

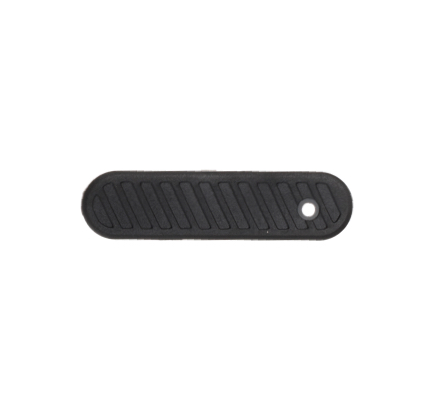

- Cap Screw x 1
- Panic Button x 1
- >Relay x 1
- Base Relay x 1
- Manual x 1
- External Battery x 1
- Cap Screw x 1

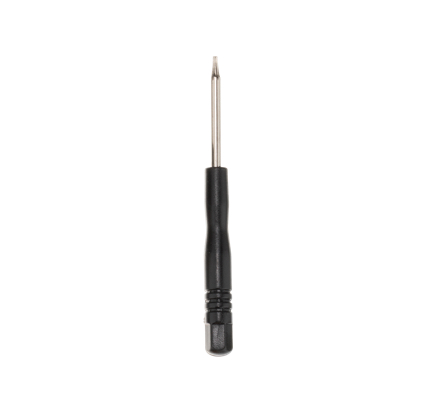

- Cover Screw Driver x 1
- Cap Screw x 2

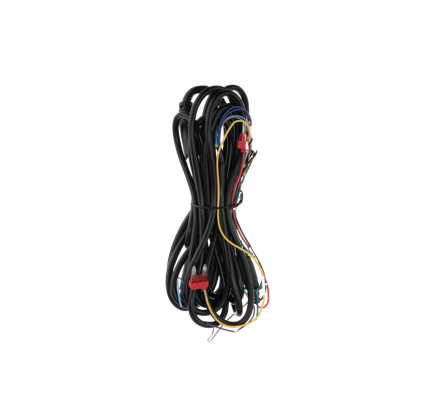

- Power Cord x 1
- Panic Button x 1
- >Relay x 1
- Base Relay x 1
- Manual x 1
- External Battery x 1
- Cap Screw x 1
- Cover Screw Driver x 1
- Cap Screw x 2
- Power Cord x 1

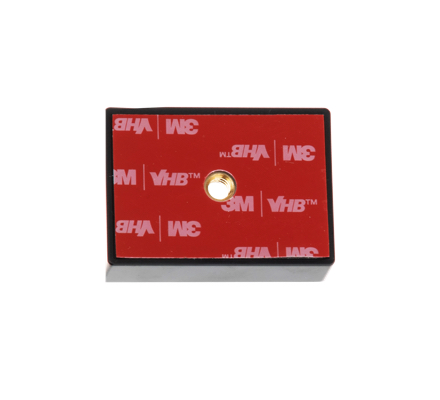

- Mount Base x 1
Panic Button x 1
>Relay x 1
Manual x 1
External Battery x 1
Cap Screw x 1
Cap Screw x 2
Power Cord x 1
Mount Base x 1
Engine Cut-Off
Remotely control the engine of the car, encounter a thief, and the driver encounters a dangerous accident. Remotely control the engine cut-off function to protect the safety of the fleet property.
